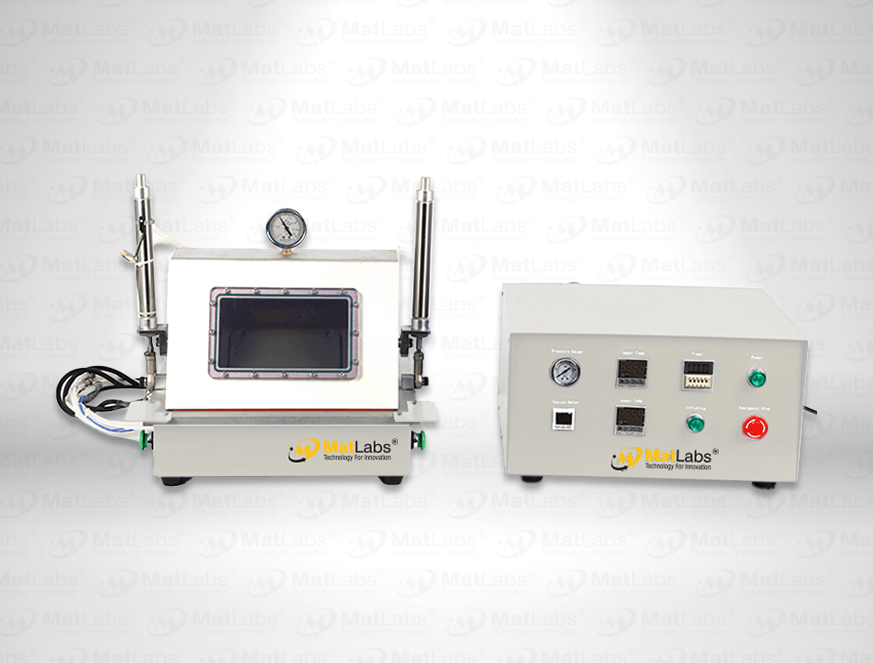

Pouch Cell Final Sealing Machine
This device is mainly applied to flexible packaging (medium and small size) lithium battery in the injection of liquid after standing vacuum, hot compression package; simple secondary packaging.
Main Feature
· Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products;
· The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters;
· Upper and lower head with cylinder driven by two linear guide sleeve guides, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements;
· With automatic puncturing function, waste recovery unit;
· Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements;
· Can be applied to different specifications of the product battery, and the adjustment is simple and convenient;
· Easy to operate, beautiful appearance, small size, light weight;
Working Principle:
First, the use of the upper and lower chamber to form a closed cavity, and then on the vacuum chamber to form a negative pressure state, while the bayonet piercing the pre-packaged part of the gas band so that the gas discharge; then through the head use Heat conduction effect on the lithium battery packaging materials (aluminium plastic film), the heating softened close to the melting state and melt together; heat through the resistance heat pipe to the head (copper) and then under the action of a certain pressure conduction To be welded to the aluminium film to complete the pressure welding; header temperature through the thermocouple and thermostat to adjust and maintain constant temperature;
Instructions
1. Remove the wooden box, lightly placed working position.
2. Connect the air supply and power supply.
3. Connect the vacuum source.
4. Start the power supply, set the air pressure. Package temperature value, package time value, vacuum value of its various parameters (to set up, the user can no longer set).
5. When the temperature reaches the set value, into the product, his hands at the same time start the left and right buttons.
6. Cover automatically down, press the O-ring on the bottom plate, the product is packaged in a vacuum sealed environment.
7. Automatic start vacuum, when the vacuum reaches the set value range, start the package.
8. Seal knife under pressure to package, timer start, the package time delay.
9. After the encapsulation is completed, inflate the sealing cavity (damage the vacuum inside the sealing cavity, the cover can be opened). The inflating time is set by the inflating timer.
10. The cover is automatically opened; the product is removed and finished.
Technical Parameters
· Cavity made of aluminium alloy, corrosion-resistant, solid structure;
· Vacuum up to-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump);
· Head temperature: RT ~ 250 Degree C, temperature adjustable;
· Temperature control accuracy: ± 1.5 Degree C;
· Heat sealing pressure: 0 ~ 7Kg / cm2 adjustable;
· Sealing time: 0 ~ 100 seconds adjustable;
· Edge width: 5mm (according to customer requirements);
· The maximum edge size: 300mm;
· Head parallelism: with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 Degree C when the seal out of the seal
· Air consumption: about 0.2L compressed gas / each time.
· Pneumatic working speed: ≥ 180 times / h
· Sealing Thickness 60 – 600 µm
· Power: 300w heat pipe, heating when the power consumption of about 0.6KW.
· Power supply: 220V / 50Hz;
· Power: 50W;
· Compressed air source: 0.5 ~ 0.7Mpa;
· Dimensions of equipment
· Dimension: Working Department: 520mm * 350mm * 650mm;
Equipment
The machine consists of the following major components
1. Mechanical parts: tray mechanism, vacuum chamber mechanism, puncture mechanism, drive mechanism, guide mechanism, base mechanism, electric box control part and so on.
2. Electrical parts: pneumatic components, solid-state relays, solenoid valves, photoelectric switches and so on.
3. Main components
Cylinder: SMC / AIRTAC
Bearing: NSK made high-quality
Thermostat: Omron (imported from Japan)
Time relay: Omron / domestic quality
Intermediate relay: Omron (imported from Japan)
Download detailed product technical specifications for more details
