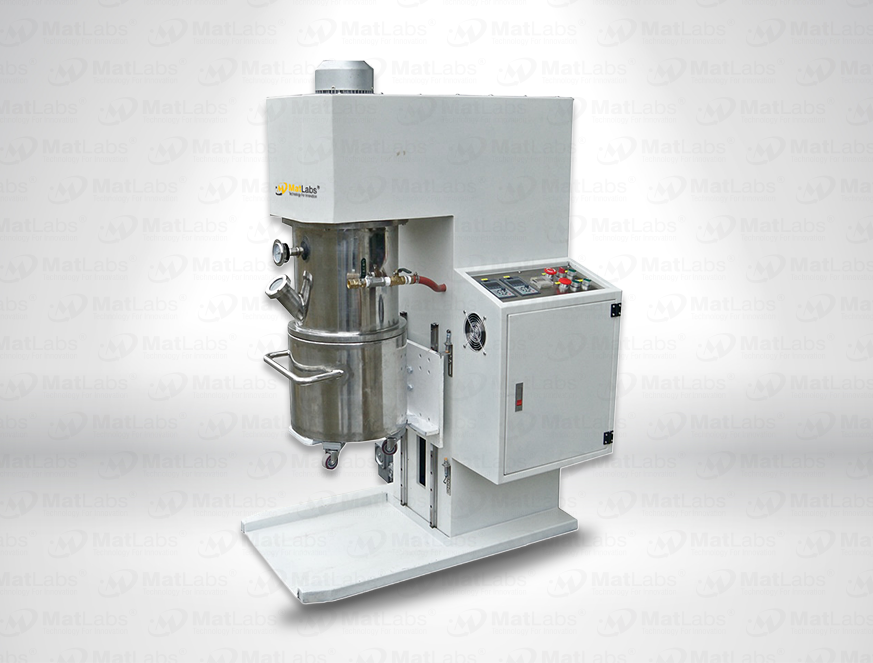

| （1）Lower Barrel Parts |
|
| Design Total Volume |
88L |
| Elective Volume |
29-60L |
| Container Inner Diameter |
|
| Container Inside Depth |
450mm |
| Container Material |
The parts in connect with materials is 304 stainless steel |
|
|
Single jacketed barrel wall for cooling or heating; single jacketed barrel bottom for cooling or heating |
| Tempering Jacket Port |
G3/4"，with quick opening movable joint
jacket withstand pressure≤0.4MPa
|
Tempering Jacket Circulation System
|
jacket water inlet temperature≤8℃，
cooling water flow＞30L/min
|
|
|
bottom of 1pcsG1-1/2" Three-piece discharge ball valve with 2" standard ISO quick connect clamp fitting |
Design Environment Temperature
|
-10～+120°C |
| Move Mode |
Casters move |
| (2) Mixing Parts |
|
| Working Frequency |
5-50hz |
| Mixing Power |
7.5kw |
| Mixing Blade Speed |
6-61rpm |
Planetary Box Rotate Speed
|
3-35rpm |
| Mixing Blade Diameter |
286mm |
| Mixing Blade Model |
Variable cross-section spiral twist type,
90 ° helix |
| Mixing Blade Material |
304 stainless steel |
|
|
0.1-1.0m/s |
| Mixing Blade Number |
2pcs |
| Distance Between Blade And Blade |
4.6±2.5mm |
| Distance Between Blade And Barrel Wall |
3±1.5mm |
Distance Between Blade And Barrel Bottom
|
3+1mm |
| (3) Dispersing Parts |
|
| Working Frequency |
5-50hz |
| Dispersing Power |
11kw |
|
|
315-3530rpm |
Dispersing Plate Diameter
|
110mm |
| Dispersing Model |
Serrated |
| Dispersing Plate Material |
304 stainless steel |
| Dispersing Line Speed |
2 -20m/s |
| Dispersing Number |
4pcs |
|
|
2pcs |
| (4) Scratch The Wall Parts |
Scratch wall bracket material：304 stainless steel
Scratch wall material：Teflon
Scratch wall rotate speed：Consistent with planetary box rotate speed
Removable or not：Removable design (Need to remove when scraping the wall on high viscosity process)
|
| (5) Base And Lifting Parts |
Parts materials：High rigidity structural carbon steel
Lifting guide：High-precision linear guide
|
| (6) Upper Barrel Parts |
Upper barrel material：304 stainless steel
Vacuum feeder interface: Quick-open interface DN100 1pcs
Powder feed port：quick opening interface DN50 1pcs
Liquid feed port：ISO standard 1" quick interface 1pcs
Sight glass port: DN80 tempered glass sight glass 2pcs
Digital vacuum gauge port：M14×1.5 Internal thread metric tooth interface 1pcs
|
| (7) Control System |
Electrical cabinet：Used to install low-voltage electrical components such as inverter
Manual operation panel：For placement buttons, knobs, gauges etc
Power supply：AC 3×380V±5﹪，50Hz
Control mode：Electric + liquid control
Power control and speed adjustment mode: Inverter start and control
Cooling mode：Air-cooled (wind cooling) and liquid cooling
Operation mode：Panel operation on the electrical cabinet with corresponding buttons + knobs
Digital temperature display gauge：material temperature Emergency
Alarm system：Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown
Speed display: Touch screen shows the speed Power instructions: 1pcs
Timer: 1pcs, to control both dispersion and mixing
Note: If you choose the HMI system configuration, the control system is integrated into the touch screen control
|
| (8) Safety Chain System |
Emergency stop: press the emergency stop switch, the device immediately stops, and cannot do anything
Start low-speed mixing: can lift the barrel and rotate at the same time
High-speed dispersion: The barrel cannot be turned until it is in place
Safe lock in operation: When the machine is running, the mixing barrel cannot be lowered, cannot open the mixing barrel.
Prevent vacuum tube backflow: special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon
Stop running fault: Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection
Mixing barrel lift: stirring barrel in place to rise
Mixing barrel did not return to normal pressure cannot be dropped.
After mixing barrel rises in place and high-speed dispersion, then can be started.
After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.
Dry mixing stage, while the barrel rising, the stirring paddle needs to rotate at the same time.
|
