High-Nickel NCM 811 Cathode Active Material (Ni-Co-Mn 8-1-1)

Matlabs Technologies offers NCM 811 (Lithium Nickel Manganese Cobalt Oxide) — a high-energy-density cathode active material engineered for next-generation lithium-ion batteries. With a nickel-rich composition (Ni:Co:Mn = 8:1:1), this polycrystalline powder delivers enhanced capacity, balanced thermal stability, and reliable cycling performance for advanced energy storage systems.

Material Code: MT-MAT-2025

Material Profile
Parameter Specification

Material Type

Lithium Nickel Manganese Cobalt Oxide

Chemical Formula

LiNi₀.₈Co₀.₁Mn₀.₁O₂

Composition Ratio

Ni : Co : Mn = 8 : 1 : 1

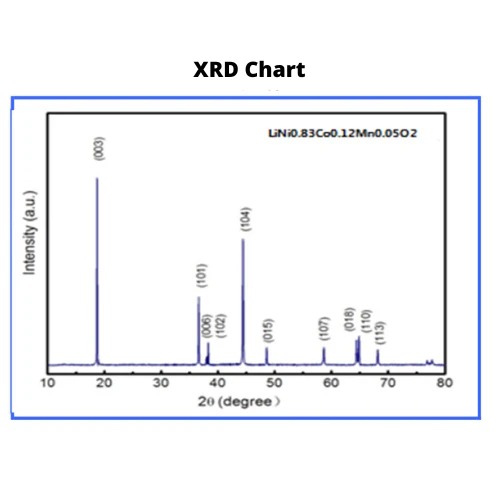

Crystal Structure

Polycrystalline

Material Code

MT-MAT-2025

Appearance

Grey-black powder

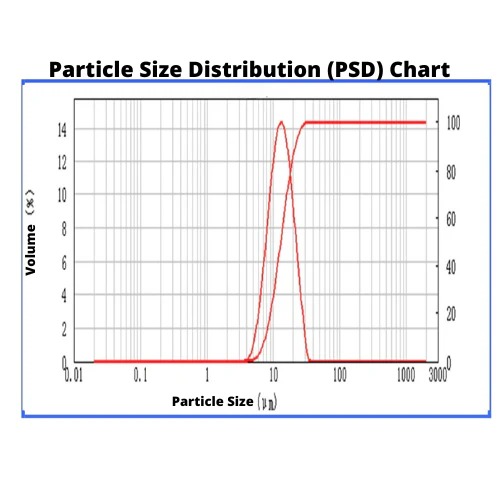

Typical Particle Size (D50) ~10–14 µm
Tap Density ≥ 2.3 g/cm³
Specific Surface Area ~0.4 – 0.7 m²/g
Residual Lithium Low
Application Type Lithium-ion battery cathode
Performance Characteristics

• High Energy Density

 Elevated nickel content enables higher specific capacity, supporting extended driving range and energy output.

• Optimized Structural Stability

 Balanced cobalt and manganese composition improves thermal behavior and cycle stability.

• Consistent Electrochemical Output

 Polycrystalline morphology ensures uniform reaction kinetics during charge–discharge cycles.

• Low Impurity Profile

 Controlled residual lithium supports improved safety and reduced side reactions.

Processing & Integration Benefits

• Compatible with standard PVDF and water-based binder systems

• Suitable for slurry coating and roll-to-roll electrode manufacturing

• Stable particle morphology supports uniform electrode density

• Designed for pouch, cylindrical, and prismatic cell formats

Recommended Applications

• Lithium-ion battery cathodes for EV and mobility platforms

• Stationary energy storage systems (ESS)

• Consumer electronics battery packs

• Battery research, validation, and pilot-scale production

• High-capacity cell development programs

Handling & Storage

Store in sealed, moisture-controlled containers away from direct exposure to air and humidity. Follow industry-standard handling protocols for nickel-rich cathode materials during processing and electrode fabrication.
